Quick Detachable Optic Mount by GPN. Anodized.

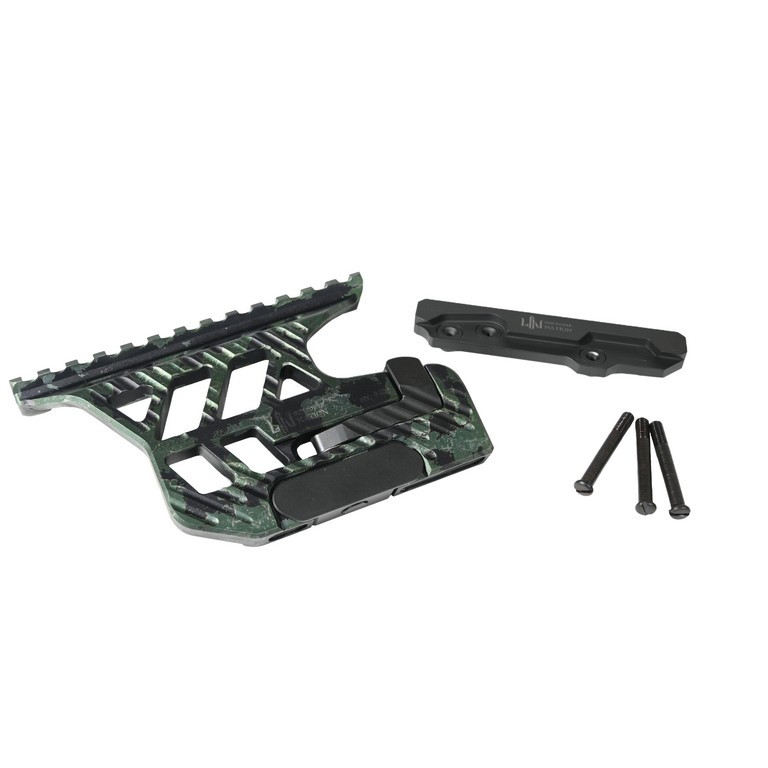

Quick Detachable Optic Mount. Comes with Scope rail and 3 rivets. TECHNICAL SPECIFICATIONS: MANUFACTURER – GUN POWER NATION. COUNTRY OF MANUFACTURE – UKRAINE. OVERALL DIMENSIONS – 142.5 x 90 x 47 MM. MATERIAL – 6082 ALUMINUM ALLOY, STEEL. WEIGHT – 370 G. WEAPON MODELS – AKM/AKMS, AK-74, MK-72, SAIGA CARABINERS, MK. MANUFACTURING METHOD – MILLING. PROTECTIVE COATING – CERAKOTED. PAINT. EQUIPMENT: QUICK-DETACHABLE OPTIC MOUNT – 1 PC. SCOPE RAIL – 1 PC. FASTENERS – 1 SET. PRODUCT DESCRIPTION: The AA-06.10.000 quick-release mount for optics consists of four elements: a base, a clamp, a clamping foot, a retaining button, and a dovetail mount. The base of the mount is a solid milled aluminum element. The upper part of the base has a Picatinny rail for mounting optical devices and equipment. The design includes a dovetail mounting slot, adjustment and locking points, and shaped slots to reduce the weight of the product. The clamp is made of high-quality steel using milling. It is used to fix the base on the dovetail. It is connected to the base with an M5 bolt and pressed against the base by two springs for easy installation. The M5 bolt allows you to adjust the clamping force of the clamp to the mount. The clamp foot is made of high-quality steel using milling. It is used to fix the clamp fastening on the “dovetail”. It is connected to the clamp and base with an M5 bolt and an M5 intermediate washer. When the foot is bent, the clamp is unlocked and the product is removed from the “dovetail,” and when clamped, the product is fixed to the “dovetail” fastener. The retaining button is made of high-quality steel using milling. It is used to fix the presser foot to the base and prevents it from bending spontaneously with the help of a tooth. It is connected to the base with an M3 bolt and is pressed against the base by a spring to hold the foot. The dovetail is made of a solid milled high-quality steel bar. The body has three holes into which T-shaped nuts with M5 thread are pressed. The set includes three split pins into which T-shaped nuts are screwed during installation and they are installed on the weapon instead of the standard ones.
